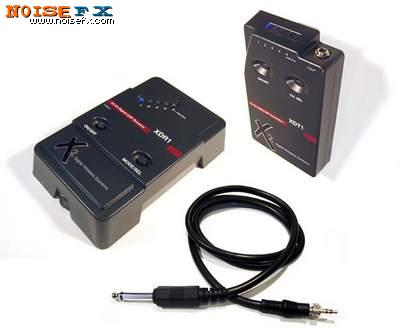

X2 Digital Wireless System XDS95

24 bit digital wireless UHF system

Description

The X2 Digital Wireless Systems XDS95 is a powerful, compact, multi-channel digital UHF system operating in the Frequency-Clear 900 MHz band. Free of companders, the system is designed to offer the ultimate in tone, performance and ease of use for performing and recording musicians - all without breaking the bank. With the XDS95 there are no knobs to adjust or external antenna to loose or break. Simply plug in, power on and the system is ready to go. The system also offers five user selectable frequencies, so others in your organization can enjoy the benefits of digital wireless without stepping on each others' toes.

Overall System Details:

Both components feature a five-segment LED display that shows audio signal level, operating channel and it's remaining battery life in one hour increments accurate to within 30 minutes using 9V Alkaline batteries. XDT1 Features Locking TRS connector Internal transmitting antenna.

• Transmission Format: X2 proprietary digital audio transmission
• Frequency Response: 20 Hz - 12 kHz
• Audio Dynamic Range: >117 dB
• Distortion: 0.03% THD
• RF Carrier Frequency: 902 MHz to 928 MHz, FSK
• Selectable Frequencies: Five
• RF Output Power: 10mw
• Audio Output Level: Unity gain with transmitter input
• Polarity: Positive voltage at input yields positive voltage at output
• Operating Range: >150 feet line-of-sight (may vary due to local conditions)
• FCC Approval: Part 15 approved, no user-license required

• A/D Conversion: 24-bit Delta Sigma, 128 times over sampling
• Input Impedance: 1.3 M Ohms
• D/A Conversion: 24-bit Delta Sigma, 128 times over sampling
• Output: 2.12V RMS (Unbalanced: 1.8K Ohms)
• Connectors: 1/4" Unbalanced stereo output, tip= instrument voicing, sleeve= full bandwidth
• LED Display: Five segment - Power On, Data Link, Channel, Battery Life, Audio Level Meter, RF Strength Controls: Power On/Off, Channel/Mode Select
• Dimensions: 3.078" W x 1.17" D x 4.7" H
• Power Requirements: 9V DC via battery or optional AC power supply (PSA120 type)
• Weight: .25 lbs (with 9v battery installed)

• Compact 'stomp-box' design fits perfectly on your pedal board
• 1/4 inch Unbalanced stereo output, tip= instrument voicing, sleeve= full bandwidth
• Approx. 8 hours of full-power performance from a single 9V Alkaline battery
• Auto Digi-Scan mode assists in selecting the best frequency.
• D/A Conversion: 24-bit Delta Sigma, 128 times over sampling
• Output: 2.12V RMS (Unbalanced: 1.8K Ohms)
• Connectors: 1/4" Unbalanced stereo output, tip= instrument voicing, sleeve= full bandwidth
• LED Display: Five segment - Power On, Data Link, Channel, Battery Life
• Audio Level Meter, RF Strength
• Controls: Power On/Off, Channel/Mode Select
• Dimensions: 3.078" W x 1.17" D x 4.7" H
• Power Requirements: 9V DC via battery or optional AC power supply (PSA120 type)
• Weight: .45 lbs (with 9v battery installed

• (1) XDR1 24-bit digital UHF Q-Diversity receiver
• (1) XDT1 24-bit digital UHF transmitter
• (2) 9-volt alkaline batteries
• (1) XC1 1/4" to 1/8" locking instrument cable
